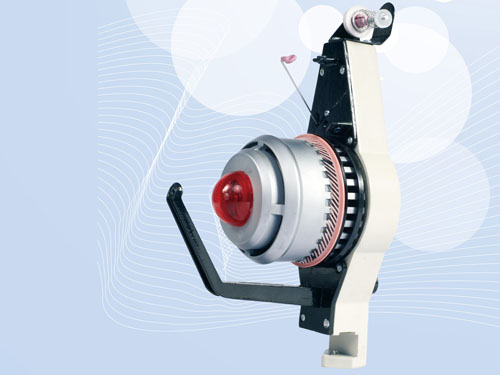

CW-I weft(In the form a complete set of CTM GA747crank rapier loom )

　　
　　Textile Machinery Co., LTD China, Hebei Chuangxing Textile Machinery Co., LTD,Jingwei Textile Machinery Co., LTD； Turkey DENGE Textile Industrial Co., LTD.,Jakar Fatih İşsever Co.BURSA； India AALIDHRA TEXPRO ENGINEERS PVT LTD ,Alidhra Weavetech Group such as Chinese and foreign textile and textile machinery enterprises to provide complementary products and quality service, welcome more manufacturers to negotiate and cooperate with us.

Main technical parameters:Supply voltage three-phase 45 ± 3V 50HzSingle-phase current <0.76ARated speed 1500r/min 3000r/min5-70 Support adapt to the yarnStart time <1.2sRotor temperature rise <10 ° CMain types:CW-l-P weft (normal type)CW-l-weft (Shanghai Textile Machinery only)CW-l-Y weft (circular knitting machines equipped with)Functions：Yarn bobbins for latitude in accordance with the loom requirements to the first winding the yarn on the drum body in the process of running and always maintain a certain amount of weft to eliminate the inequality of the tension of the weft of the loom during weaving. To provide a uniform tension of the weft to the looms.Advantages:Greatly reduce the chances of failure looms folder yarn, weft tension adjusting device. Eliminate the inequality of the weft tension, to reduce the phenomenon of weft. Has a tight weft stop devices to eliminate the phenomenon of the fabric of the Weft. Has a weft stop devices to avoid the generation of scrap fabric. Small in size. And light weight. Compact structure. Low price. The control circuit is simple and reliable. Installation repair, maintenance performance.Technical function and parameters:Applicable weft, cotton, wool, hemp, silk and all kinds of chemical fiber. Weft control: control by the tilt plate of the yarn by its adjustable arm to control the automatic parking, start. The weft yarn tension device types: tight line, the tension ring.
