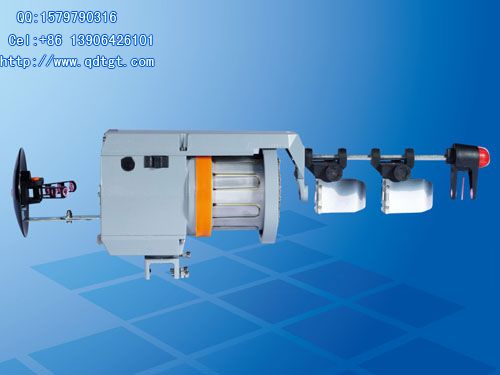

CWQ - Weft Storage Device (rapier loom are used) Such as textile machinery CTM high-speed loom in original form a complete set,

　　
　　Textile Machinery Co., LTD China, Hebei Chuangxing Textile Machinery Co., LTD,Jingwei Textile Machinery Co., LTD； Turkey DENGE Textile Industrial Co., LTD.,Jakar Fatih İşsever Co.BURSA； India AALIDHRA TEXPRO ENGINEERS PVT LTD ,Alidhra Weavetech Group such as Chinese and foreign textile and textile machinery enterprises to provide complementary products and quality service, welcome more manufacturers to negotiate and cooperate with us.

Technical parameters:1、the maximum for the latitude rate CQW-180 type -1400m/min CQW-130/90 type -1000m/min2、applicable line density Short yarn Nm4-Nm120 Long yarn 6detx-1500detx3、for yarn types A variety of weak twist hard twist and untwisted yarn (silk), elastic twist, artificial shaped wire, coated textile and prevent the use of fiber4、the applicable mechanism Can use a variety of width 4M look rapier loom, projectile loom, knitting machines or other requirements for line tension constant place.5、the merits and demerits of the environment At room temperature 10-40 ° C Air relative humidity should not exceed 95% Vibration in the 5-100Hz range acceleration is not greater than 1g6、the power box Power supply voltage: three-phase 50Hz380V7、the weft feeder voltage Of the DC180V + DC8V (CQW-180) Of the DC130V + DC8V (CQW-130) 3ΦAC90V (CQW-130/90 type)8、weft input power 130W (CQW-180 type) 80w (CQW-130/90 type)9、the weft Net weight: 6.5kg10、Power Box Net Weight: 10kg

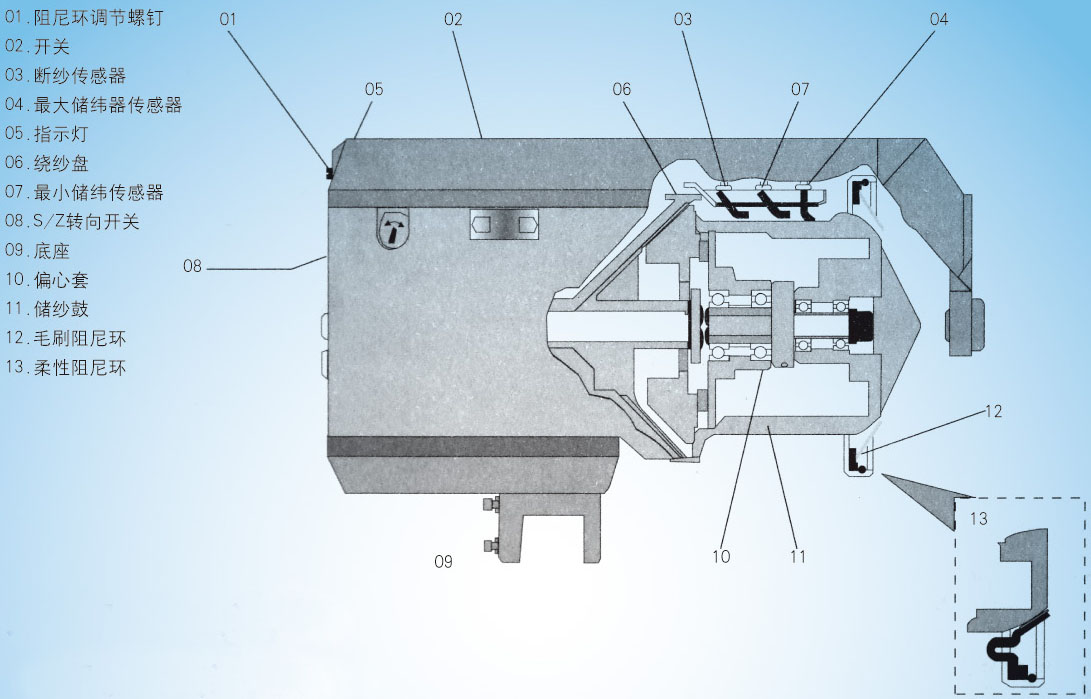

Weft feeder structure and main accessories

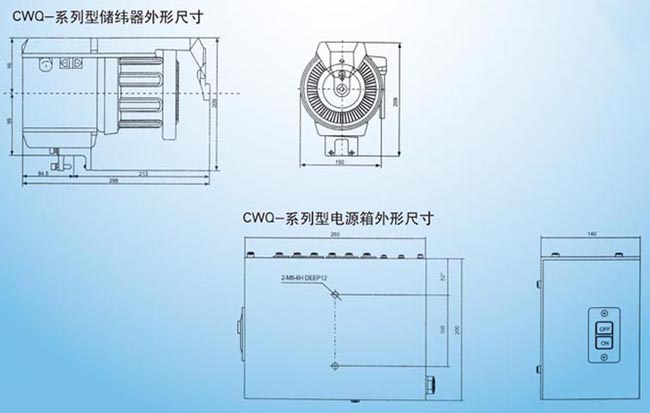

Dimensions and installation dimensions
